NU5703
The NU5703 is a high voltage, high current, bi-directional power switch, integrated with common source N-type MOSFETs.
概述
The NU5703 is a high voltage, high current, bidirectional power switch, integrated with common source N-type MOSFETs.

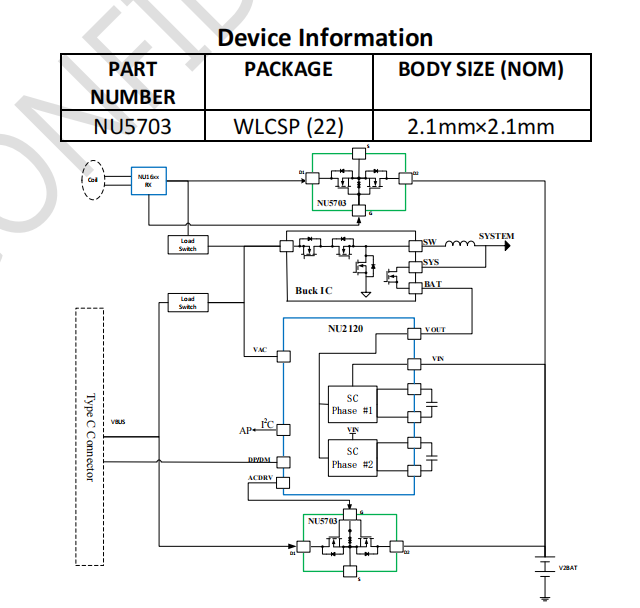

放大
关键特性
• Bi-directional Power Switch (BDPS)
• High-Side Blocking Capability
• Support 32V DC Absolute Voltage Stress
• Support 35V Spike Absolute Voltage Stress with 5us duration
• DC Input Voltage up to 22V Operation Voltage
• Ultra-Low Conduction Resistance 7.4mohm at 5V Driver Voltage
• Transient Current Capability 100A with 1ms duration
• 15A Current Conduction Capability
• 0.33mm Height for thermal coating consideration
应用
- • Smart Phone
- • Tablet PC
