NU2121

使用开关电容架构的电池快充方案,充电效率达到 97%,最高电流达到7A

概述

NU2121是一款独立的双向开关电容变换器,集成了功率开关,正向输出电流10A(2:1转换),反向输出电流5A(1:2转换)。该架构和集成的FET经过优化,可在固定频率模式下实现50%的占空比。在0A负载切换模式下,NU2121的典型静态电流为50uA,在低功耗模式下为14uA。优化后的箕斗控制方案大大提高了轻载的效率。它的高开关频率高达1MHz,减小了电容器的尺寸,并进一步减少了电路的面积。

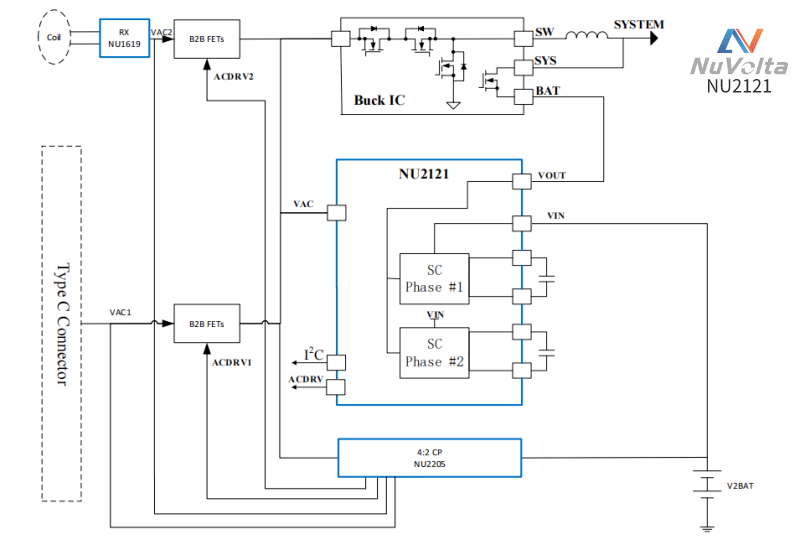

放大

关键特性
  • • Support 2:1 and 1:2 switched capacitor DC/DC converter for 2S battery in series

    Excellent light-load mode efficiency performance

    - 2:1 DCDC- Up to 99% efficiency at 1A/4.0V

    - 2:1 DCDC- Up to 99% efficiency at 0.1A/4.0V

    - 1:2 DC/DC Up to 98.8% efficiency at 2A/4.0V

    Ultra-low 50uA quiescent current with open load

    Integrated driver ACDRV of the external BackBack high-side switch

    Audio mode to eliminate audible noise issue, selective switching frequency: 30KHz and 25KHz

    Dithering switching frequency to optimize the EMI emission

    Dead battery activation power path

    Power good indicator output

    Integrated Programmable Protection Features for Safe Operation

    - Input Under-Voltage Protection (VIN_UVP)

    - Input Over-Voltage Protection (VIN_OVP)

    - Output Over-Voltage Protection (VOUT_OVP)

    - Two-level forward direction Output OverCurrent Protection IOCP and VOCP

    - Reverse direction Input Over-Current Protection

    - VAC Over-Voltage Protection (VAC_OVP)

    - Two-level thermal alarms and 150°C thermal protection with hiccup mode

    Programmable Settings for System Optimization - STAT, FLAG, and MASK options for Interrupts

    I2C compatible interface supporting 1.2V/1.8V/3.3V supply

应用
  • • 智能手机
  • • 平板电脑
