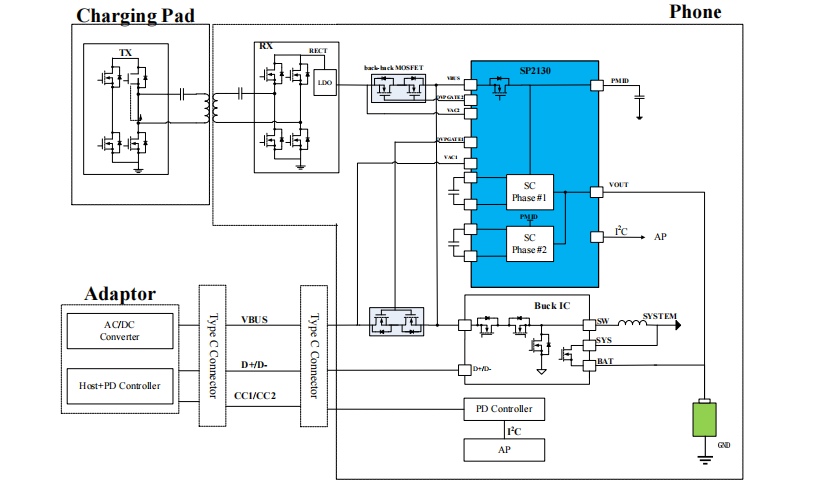

SP2130是一个98.2%的效率,8-A电池充电解决方案,使用开关帽架构。该架构和集成的fet经过优化,可实现50%的占空比,允许电缆电流为输送到电池的电流的一半,减少充电电缆的损耗,并限制应用中的温升。双相结构降低了输入电压上限的要求,同时也降低了输出电压纹波。
放大
• 98.2% Efficient at 2:1 charge mode, 99.2% Efficient at 1:1 charge mode
• Switched Cap Architecture Optimized for 50% Duty Cycle.
- Input Voltage is 2x Single-Cell Battery Voltage
- Output Current is 2x of Input Current
- Reduces Power Loss Across the Cable
• Bypass Mode From Adapter to Battery
- Low Ron Charging Path Resistance to Support 5A Charging Current
• Dual Input Power Path Management
- Two Drivers for External Back-back MOSFETs integrated to manage power from two different input sources
• Support Master and Slave Operation
• Integrated Programmable Protection Features for Safe Operation
- Input Over-Voltage Protection (BUS_OVP) with Adjustable Alarm
- Input Over-Current Protection (BUS_OCP) with Adjustable Alarm
- Input Under-Current Protection (BUS_UCP)
- BUS Reverse-Current Protection (BUS_RCP)
- Input Over-Voltage with External OVP FET
- Battery Over-Voltage Protection (BAT_OVP) with Adjustable Alarm
- Output Over-Voltage (VOUT_OVP)
- IBAT Over-Current Protection (BAT_OCP) with Adjustable Alarm
- IBAT Under-Current Protection Alarm (BAT_UCP_ALM)
- Battery Temperature Monitoring
- Connector Temperature Monitoring
• Programmable Settings for System Optimization
- STAT, FLAG, and MASK options for Interrupts
- ADC Readings and Configuration
• Integrated 15-Bit Analog-to-Digital Converter (ADC)
- 1% VAC1, VAC2 and BUS Voltage
- 5% BUS current at 3A and above
- 1% VOUT Voltage
- 0.25% BAT voltage with Differential Sensing
- 1.5% BAT Current at 6 A with External RSENSE =2mΩ
- 1% BAT Temperature
- 1% BUS Temperature
- 4℃ Die Temperature
